actuator_manager.hpp File Reference

Declares the manager for the global collection of Actuator objects. More...

#include <stdint.h>
#include "internal/etl_array.hpp"
#include "internal/user_config_bridge.hpp"

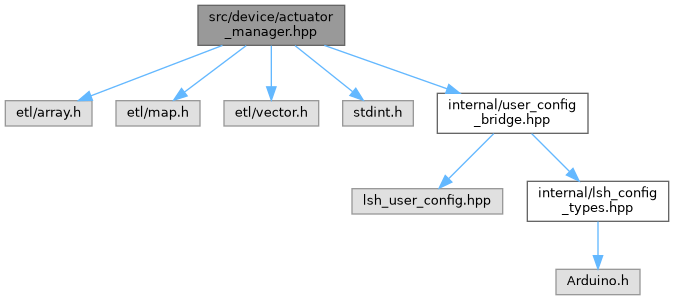

Include dependency graph for actuator_manager.hpp:

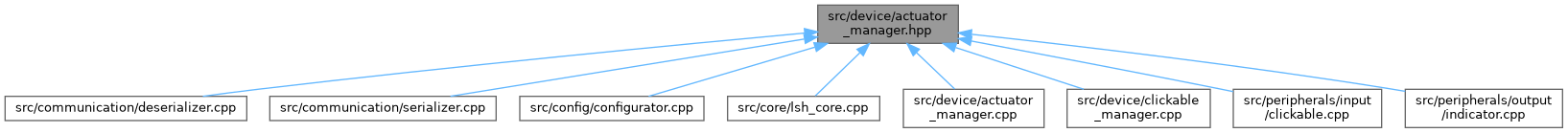

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	Actuators
	Globally stores all actuators (relays) and to operates over them.

Typedefs
using	Actuators::PackedActuatorStateBytes = etl::array< uint8_t, CONFIG_PACKED_ACTUATOR_STATE_STORAGE_CAPACITY >
	Compact shadow of the full actuator runtime state in protocol bit order.

Functions
auto	Actuators::getId (uint8_t actuatorIndex) -> uint8_t
	Return the static wire ID for one registered actuator index.
auto	Actuators::getActuator (uint8_t actuatorId) -> Actuator *
	Get a single actuator.
auto	Actuators::getIndex (uint8_t actuatorId) -> uint8_t
	Get a single actuator index (in device vector of actuators).
auto	Actuators::tryGetIndex (uint8_t actuatorId, uint8_t &actuatorIndex) -> bool
	Resolves an actuator ID to its dense runtime index with a single map lookup.
auto	Actuators::actuatorExists (uint8_t actuatorId) -> bool
	Get if the actuator actually exists.
void	Actuators::recordSwitchTime (uint8_t actuatorIndex, uint32_t now_ms)
	Records the latest switch time for an actuator when compact actuator timer storage is enabled.
void	Actuators::updatePackedState (uint8_t actuatorIndex, bool state)
	Keep the compact actuator-state shadow aligned with one runtime state change.
template<uint8_t ActuatorIndex>
	Actuators::__attribute__ ((always_inline)) inline void updatePackedStateStatic(bool state)
	Keep the packed actuator-state shadow aligned using a generated index.
auto	Actuators::getPackedStateByteCount () -> uint8_t
	Return the number of packed bytes required by the current topology.
auto	Actuators::getPackedStateByte (uint8_t byteIndex) -> uint8_t
	Return one packed state byte in protocol wire order.
void	Actuators::finalizeSetup ()
	Final validation after actuator registration.

Detailed Description

Declares the manager for the global collection of Actuator objects.

Author

Jacopo Labardi (labodj)

Copyright 2026 Jacopo Labardi

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
