Actuators Namespace Reference

Globally stores all actuators (relays) and to operates over them. More...

Typedefs
using	PackedActuatorStateBytes = etl::array< uint8_t, CONFIG_PACKED_ACTUATOR_STATE_STORAGE_CAPACITY >
	Compact shadow of the full actuator runtime state in protocol bit order.

Functions
auto	getId (uint8_t actuatorIndex) -> uint8_t
	Return the static wire ID for one registered actuator index.
auto	getActuator (uint8_t actuatorId) -> Actuator *
	Get a single actuator.
auto	getIndex (uint8_t actuatorId) -> uint8_t
	Get a single actuator index (in device vector of actuators).
auto	tryGetIndex (uint8_t actuatorId, uint8_t &actuatorIndex) -> bool
	Resolves an actuator ID to its dense runtime index with a single map lookup.
auto	actuatorExists (uint8_t actuatorId) -> bool
	Get if the actuator actually exists.
void	recordSwitchTime (uint8_t actuatorIndex, uint32_t now_ms)
	Records the latest switch time for an actuator when compact actuator timer storage is enabled.
void	updatePackedState (uint8_t actuatorIndex, bool state)
	Keep the compact actuator-state shadow aligned with one runtime state change.
auto	getPackedStateByteCount () -> uint8_t
	Return the number of packed bytes required by the current topology.
auto	getPackedStateByte (uint8_t byteIndex) -> uint8_t
	Return one packed state byte in protocol wire order.
void	finalizeSetup ()
	Final validation after actuator registration.
template<uint8_t ActuatorIndex>
	__attribute__ ((always_inline)) inline void updatePackedStateStatic(bool state)
	Keep the packed actuator-state shadow aligned using a generated index.

Variables
PackedActuatorStateBytes	packedActuatorStates {}
	Canonical packed actuator-state shadow kept in sync with Actuator::setState().

Detailed Description

Globally stores all actuators (relays) and to operates over them.

Typedef Documentation

PackedActuatorStateBytes

using Actuators::PackedActuatorStateBytes = typedef etl::array<uint8_t, CONFIG_PACKED_ACTUATOR_STATE_STORAGE_CAPACITY>

Compact shadow of the full actuator runtime state in protocol bit order.

Bit 0 maps to actuator index 0, bit 1 to actuator index 1, and so on. The serializer can therefore emit ACTUATORS_STATE directly from this cached representation without rescanning every actuator object.

Function Documentation

__attribute__()

template<uint8_t ActuatorIndex>

Actuators::__attribute__

(

(always_inline)

)

Keep the packed actuator-state shadow aligned using a generated index.

Generated profiles already know the dense actuator index at compile time. Keeping this tiny helper in the header lets AVR-GCC fold the byte index and bit mask instead of paying a runtime shift/mask path for every static actuator transition.

Template Parameters

ActuatorIndex

Dense runtime actuator index from the static profile.

Parameters

state

new actuator state.

actuatorExists()

auto Actuators::actuatorExists

(

uint8_t

actuatorId

)

-> bool

Get if the actuator actually exists.

Parameters

actuatorId

Unique ID of the actuator.

Returns

true if actuator exists.

false if actuator doesn't exist.

Here is the call graph for this function:

getActuator()

auto Actuators::getActuator

(

uint8_t

actuatorId

)

-> Actuator *

Get a single actuator.

Parameters

actuatorId

actuator UUID.

Returns

Actuator* A single actuator when the ID exists.

nullptr When the ID is unknown.

Here is the call graph for this function:

getId()

auto Actuators::getId

(

uint8_t

actuatorIndex

)

-> uint8_t

Return the static wire ID for one registered actuator index.

Parameters

actuatorIndex

dense runtime actuator index.

Returns

uint8_t actuator ID, or zero when the index is outside the static profile.

Here is the caller graph for this function:

getIndex()

auto Actuators::getIndex

(

uint8_t

actuatorId

)

-> uint8_t

Get a single actuator index (in device vector of actuators).

Parameters

actuatorId

actuator UUID.

Returns

uint8_t A single actuator index (in device vector of actuators).

UINT8_MAX When the ID is unknown.

Here is the call graph for this function:

Here is the caller graph for this function:

getPackedStateByte()

auto Actuators::getPackedStateByte

(

uint8_t

byteIndex

)

-> uint8_t

Return one packed state byte in protocol wire order.

Return one packed actuator-state byte in protocol wire order.

Parameters

byteIndex

packed byte index.

Returns

uint8_t packed actuator-state byte, or zero when out of range.

Parameters

byteIndex

packed byte index.

Returns

uint8_t packed actuator-state byte, or zero when byteIndex is out of range.

getPackedStateByteCount()

auto Actuators::getPackedStateByteCount

(

)

-> uint8_t

Return the number of packed bytes required by the current topology.

Return the number of packed bytes required by the active actuator topology.

Returns

uint8_t number of bytes needed by the compact ACTUATORS_STATE payload.

recordSwitchTime()

void Actuators::recordSwitchTime	(	uint8_t	actuatorIndex,
		uint32_t	now_ms
	)

Records the latest switch time for an actuator when compact actuator timer storage is enabled.

Parameters

actuatorIndex	dense runtime actuator index.
now_ms	cached switch timestamp.

tryGetIndex()

auto Actuators::tryGetIndex	(	uint8_t	actuatorId,
		uint8_t &	actuatorIndex
	)		-> bool

Resolves an actuator ID to its dense runtime index with a single map lookup.

Parameters

actuatorId	Actuator UUID.
actuatorIndex	Output runtime index when the ID exists.

Returns

true if the actuator exists.

false otherwise.

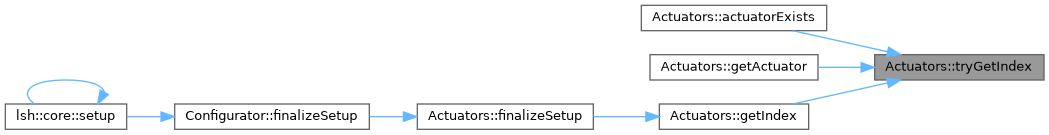

Here is the caller graph for this function:

updatePackedState()

void Actuators::updatePackedState	(	uint8_t	actuatorIndex,
		bool	state
	)

Keep the compact actuator-state shadow aligned with one runtime state change.

Parameters

actuatorIndex	dense runtime actuator index.
state	new actuator state.

Variable Documentation

packedActuatorStates

PackedActuatorStateBytes Actuators::packedActuatorStates {}

Canonical packed actuator-state shadow kept in sync with Actuator::setState().

Canonical packed actuator-state shadow kept aligned with runtime changes.

The bridge serializer consumes this compact representation directly, so actuator state reporting no longer has to rebuild protocol bytes by rescanning every actuator object.
