Actuator Class Reference

Represents an actuator (relay) attached to a digital pin. More...

#include <actuator.hpp>

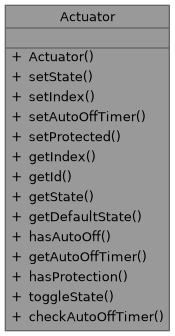

Collaboration diagram for Actuator:

Public Member Functions
LSH_OPTIONAL_CONSTEXPR_CTOR	Actuator (uint8_t pin, bool normalState=false) noexcept
	Construct a new Actuator object, conventional IO version.
template<uint8_t Pin>
LSH_OPTIONAL_CONSTEXPR_CTOR	Actuator (lsh::core::PinTag< Pin >, bool normalState=false) noexcept
	Construct an actuator from a compile-time pin tag on the slow-I/O path.
auto	setState (bool state) -> bool
	Set the new actuator state if the new state can be set.
auto	setState (bool state, uint32_t now_ms) -> bool
	Set the new actuator state if the new state can be set.
auto	setStateForIndex (uint8_t actuatorIndex, bool state) -> bool
	Set the new actuator state with a generated dense runtime index.
auto	setStateForIndex (uint8_t actuatorIndex, bool state, uint32_t now_ms) -> bool
	Set the new actuator state with generated index and cached timestamp.
template<uint8_t ActuatorIndex>
auto	setStateStatic (bool state) -> bool
template<uint8_t ActuatorIndex>
auto	setStateStatic (bool state, uint32_t now_ms) -> bool
void	setIndex (uint8_t indexToSet)
	store the actuator index in Actuators namespace array.
auto	setProtected (bool hasProtection) -> Actuator &
	Set protection against some turn ON/OFF behaviour.
auto	getIndex () const -> uint8_t
	Get the actuator index on Actuators namespace array.
auto	getState () const -> bool
	Get the state of the actuator.
auto	toggleState () -> bool
	Switch the state of the actuator (if it was OFF is going to be ON and vice versa).
auto	toggleState (uint32_t now_ms) -> bool
	Switch the state of the actuator using a caller-cached timestamp.
auto	toggleStateForIndex (uint8_t actuatorIndex) -> bool
	Toggle the actuator with a generated dense runtime index.
auto	toggleStateForIndex (uint8_t actuatorIndex, uint32_t now_ms) -> bool
	Toggle the actuator with generated index and caller-cached timestamp.
template<uint8_t ActuatorIndex>
auto	toggleStateStatic () -> bool
template<uint8_t ActuatorIndex>
auto	toggleStateStatic (uint32_t now_ms) -> bool
auto	checkAutoOffTimer (uint32_t now_ms, uint32_t autoOffTimer_ms) -> bool
	Checks the provided auto-off timer, switch OFF the actuator if it's over.
auto	checkAutoOffTimerForIndex (uint8_t actuatorIndex, uint32_t now_ms, uint32_t autoOffTimer_ms) -> bool
	Checks an auto-off timer with the generated dense actuator index.

Detailed Description

Represents an actuator (relay) attached to a digital pin.

Constructor & Destructor Documentation

Actuator() [1/2]

LSH_OPTIONAL_CONSTEXPR_CTOR Actuator::Actuator ( uint8_t  pin, bool  normalState = false  )

inlineexplicitnoexcept

Construct a new Actuator object, conventional IO version.

Parameters

pin	pin number
normalState	the default state of the actuator.

Actuator() [2/2]

template<uint8_t Pin>

LSH_OPTIONAL_CONSTEXPR_CTOR Actuator::Actuator ( lsh::core::PinTag< Pin >  , bool  normalState = false  )

inlineexplicitnoexcept

Construct an actuator from a compile-time pin tag on the slow-I/O path.

The tag keeps the public macro surface uniform even when fast I/O is disabled or unavailable for the current build target.

Member Function Documentation

checkAutoOffTimer()

auto Actuator::checkAutoOffTimer	(	uint32_t	now_ms,
		uint32_t	autoOffTimer_ms
	)		-> bool

Checks the provided auto-off timer, switch OFF the actuator if it's over.

Parameters

now_ms	caller-cached current time in milliseconds.
autoOffTimer_ms	auto-off timer to test.

Returns

true if the state has been changed.

false otherwise.

checkAutoOffTimerForIndex()

auto Actuator::checkAutoOffTimerForIndex	(	uint8_t	actuatorIndex,
		uint32_t	now_ms,
		uint32_t	autoOffTimer_ms
	)		-> bool

Checks an auto-off timer with the generated dense actuator index.

Parameters

actuatorIndex	Dense static-profile actuator index.
now_ms	caller-cached current time in milliseconds.
autoOffTimer_ms	auto-off timer to test.

Returns

true if the state has been changed.

false otherwise.

getIndex()

auto Actuator::getIndex

(

)

const -> uint8_t

Get the actuator index on Actuators namespace array.

Returns

uint8_t actuator index.

getState()

auto Actuator::getState

(

)

const -> bool

Get the state of the actuator.

Returns

true if ON.

false if OFF.

setIndex()

void Actuator::setIndex

(

uint8_t

indexToSet

)

store the actuator index in Actuators namespace array.

Parameters

indexToSet

index to set.

setProtected()

auto Actuator::setProtected

(

bool

hasProtection

)

-> Actuator &

Set protection against some turn ON/OFF behaviour.

Parameters

hasProtection

to set the property.

Returns

Actuator& the object instance.

setState() [1/2]

auto Actuator::setState

(

bool

state

)

-> bool

Set the new actuator state if the new state can be set.

Parameters

state

new state to set.

Returns

true if the state has been applied.

false otherwise.

Here is the call graph for this function:

setState() [2/2]

auto Actuator::setState	(	bool	state,
		uint32_t	now_ms
	)		-> bool

Set the new actuator state if the new state can be set.

Parameters

state	new state to set.
now_ms	caller-cached timestamp used when debounce or auto-off storage needs it.

Returns

true if the state has been applied.

false otherwise.

setStateForIndex() [1/2]

auto Actuator::setStateForIndex	(	uint8_t	actuatorIndex,
		bool	state
	)		-> bool

Set the new actuator state with a generated dense runtime index.

Parameters

actuatorIndex	Dense static-profile actuator index.
state	new state to set.

Returns

true if the state has been applied.

false otherwise.

Here is the call graph for this function:

setStateForIndex() [2/2]

auto Actuator::setStateForIndex	(	uint8_t	actuatorIndex,
		bool	state,
		uint32_t	now_ms
	)		-> bool

Set the new actuator state with generated index and cached timestamp.

Parameters

actuatorIndex	Dense static-profile actuator index.
state	new state to set.
now_ms	caller-cached timestamp used when debounce or auto-off storage needs it.

Returns

true if the state has been applied.

false otherwise.

toggleState() [1/2]

auto Actuator::toggleState

(

)

-> bool

Switch the state of the actuator (if it was OFF is going to be ON and vice versa).

Returns

true if the state has been changed.

false otherwise.

toggleState() [2/2]

auto Actuator::toggleState

(

uint32_t

now_ms

)

-> bool

Switch the state of the actuator using a caller-cached timestamp.

Parameters

now_ms

cached timestamp shared by a generated action body.

Returns

true if the state has been changed.

false otherwise.

toggleStateForIndex() [1/2]

auto Actuator::toggleStateForIndex

(

uint8_t

actuatorIndex

)

-> bool

Toggle the actuator with a generated dense runtime index.

Parameters

actuatorIndex

Dense static-profile actuator index.

Returns

true if the state has been changed.

false otherwise.

toggleStateForIndex() [2/2]

auto Actuator::toggleStateForIndex	(	uint8_t	actuatorIndex,
		uint32_t	now_ms
	)		-> bool

Toggle the actuator with generated index and caller-cached timestamp.

Parameters

actuatorIndex	Dense static-profile actuator index.
now_ms	cached timestamp shared by a generated action body.

Returns

true if the state has been changed.

false otherwise.

---

The documentation for this class was generated from the following files:

• src/peripherals/output/actuator.hpp
• src/peripherals/output/actuator.cpp
