actuator_manager.cpp File Reference

Implements the logic for managing and operating on all system Actuators. More...

#include "device/actuator_manager.hpp"
#include "config/static_config.hpp"
#include "internal/user_config_bridge.hpp"
#include "peripherals/output/actuator.hpp"
#include "util/constants/config.hpp"
#include "util/constants/wrong_config_strings.hpp"
#include "util/debug/debug.hpp"
#include "util/reset.hpp"

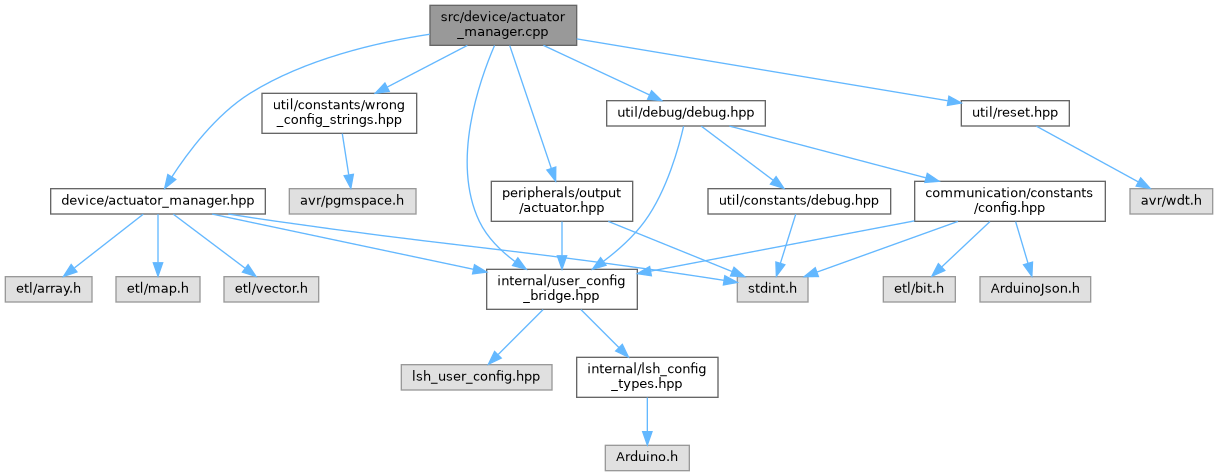

Include dependency graph for actuator_manager.cpp:

Namespaces
namespace	Actuators
	Globally stores all actuators (relays) and to operates over them.

Functions
auto	Actuators::getId (uint8_t actuatorIndex) -> uint8_t
	Return the static wire ID for one registered actuator index.
auto	Actuators::getIndex (uint8_t actuatorId) -> uint8_t
	Get a single actuator index (in device vector of actuators).
auto	Actuators::tryGetIndex (uint8_t actuatorId, uint8_t &actuatorIndex) -> bool
	Resolves an actuator ID to its dense runtime index with a single map lookup.
auto	Actuators::actuatorExists (uint8_t actuatorId) -> bool
	Get if the actuator actually exists.
void	Actuators::recordSwitchTime (uint8_t actuatorIndex, uint32_t now_ms)
	Records the latest switch time for an actuator when compact actuator timer storage is enabled.
void	Actuators::updatePackedState (uint8_t actuatorIndex, bool state)
	Keep the compact actuator-state shadow aligned with one runtime state change.
auto	Actuators::getPackedStateByteCount () -> uint8_t
	Return the number of packed bytes required by the current topology.
auto	Actuators::getPackedStateByte (uint8_t byteIndex) -> uint8_t
	Return one packed state byte in protocol wire order.
void	Actuators::finalizeSetup ()
	Final validation after actuator registration.

Variables
PackedActuatorStateBytes	Actuators::packedActuatorStates {}
	Canonical packed actuator-state shadow kept in sync with Actuator::setState().

Detailed Description

Implements the logic for managing and operating on all system Actuators.

Author

Jacopo Labardi (labodj)

Copyright 2026 Jacopo Labardi
