protocol.hpp File Reference

Defines the communication protocol contract (JSON keys and command IDs). More...

#include <stdint.h>

Include dependency graph for protocol.hpp:

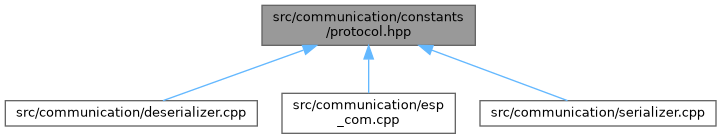

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum class	lsh::core::protocol::Command : uint8_t {   DEVICE_DETAILS = 1 , ACTUATORS_STATE = 2 , NETWORK_CLICK_REQUEST = 3 , BOOT = 4 ,   PING_ = 5 , REQUEST_DETAILS = 10 , REQUEST_STATE = 11 , SET_STATE = 12 ,   SET_SINGLE_ACTUATOR = 13 , NETWORK_CLICK_ACK = 14 , FAILOVER = 15 , FAILOVER_CLICK = 16 ,   NETWORK_CLICK_CONFIRM = 17 , SYSTEM_REBOOT = 254 , SYSTEM_RESET = 255 }
	Valid command types for the 'p' (payload) key. More...
enum class	lsh::core::protocol::ProtocolClickType : uint8_t { LONG = 1 , SUPER_LONG = 2 }
	Valid click types for the 't' (type) key.

Variables
constexpr uint32_t	lsh::core::protocol::SPEC_REVISION = 2026050101U
	Metadata-only revision, never transmitted on wire.
constexpr uint8_t	lsh::core::protocol::WIRE_PROTOCOL_MAJOR = 3U
	Handshake-only protocol major, transmitted only in DEVICE_DETAILS.
constexpr char	lsh::core::protocol::KEY_PAYLOAD [] = "p"
constexpr char	lsh::core::protocol::KEY_PROTOCOL_MAJOR [] = "v"
constexpr char	lsh::core::protocol::KEY_NAME [] = "n"
constexpr char	lsh::core::protocol::KEY_ACTUATORS_ARRAY [] = "a"
constexpr char	lsh::core::protocol::KEY_BUTTONS_ARRAY [] = "b"
constexpr char	lsh::core::protocol::KEY_CORRELATION_ID [] = "c"
constexpr char	lsh::core::protocol::KEY_ID [] = "i"
constexpr char	lsh::core::protocol::KEY_STATE [] = "s"
constexpr char	lsh::core::protocol::KEY_TYPE [] = "t"

Detailed Description

Defines the communication protocol contract (JSON keys and command IDs).

Author

Jacopo Labardi (labodj)

Note

Do not edit manually. Run tools/generate_lsh_protocol.py instead.

Copyright 2026 Jacopo Labardi

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Enumeration Type Documentation

Command

enum class lsh::core::protocol::Command : uint8_t

strong

Valid command types for the 'p' (payload) key.

Enumerator
DEVICE_DETAILS	Device details payload with handshake-only protocol major used for wire compatibility checks.
ACTUATORS_STATE	Bitpacked actuator state payload.
NETWORK_CLICK_REQUEST	Network click request with correlation ID.
BOOT	Controller boot notification and re-sync trigger. Does not carry version metadata.
PING_	Ping or heartbeat payload.
REQUEST_DETAILS	Request device details.
REQUEST_STATE	Request current state.
SET_STATE	Set all actuators.
SET_SINGLE_ACTUATOR	Set a single actuator.
NETWORK_CLICK_ACK	Acknowledge a network click with correlation ID.
FAILOVER	General failover signal.
FAILOVER_CLICK	Failover for a specific click with correlation ID.
NETWORK_CLICK_CONFIRM	Confirm a network click after ACK using the same correlation ID.
SYSTEM_REBOOT	Bridge system reboot command.
SYSTEM_RESET	Bridge system reset command.
