Serializer Namespace Reference

Provide functions to prepare and serialize Json payloads. More...

Functions
void	serializeStaticJson (constants::payloads::StaticType payloadType)
	Send a static json payload.
void	serializeDetails ()
	Prepare and send json details payload (eg: {"p":1,"n":"c1","a":[1,2,...],"b":[1,3,...]}).
void	serializeActuatorsState ()
	Prepare and send a JSON actuators state payload with bitpacked byte array.
void	serializeNetworkClick (uint8_t clickableIndex, constants::ClickType clickType, bool confirm)
	Prepares and sends a JSON network click payload.

Detailed Description

Provide functions to prepare and serialize Json payloads.

Function Documentation

serializeActuatorsState()

void Serializer::serializeActuatorsState

(

)

Prepare and send a JSON actuators state payload with bitpacked byte array.

AVR-optimized packing using:

• LUT for O(1) bit mask lookup (essential, AVR has no barrel shifter)
• Bit shift >>3 instead of /8 (~1 cycle vs ~20-50 cycles)
• Per-byte loop structure (fewer outer iterations)
• Incremental index instead of multiplication (avoids *8)

Output format: {"p":2,"s":[byte0,byte1,...]} Each byte contains 8 actuator states (bit 0 = first actuator in byte). Example: 12 actuators → {"p":2,"s":[90,15]} (2 bytes vs 12 array elements)

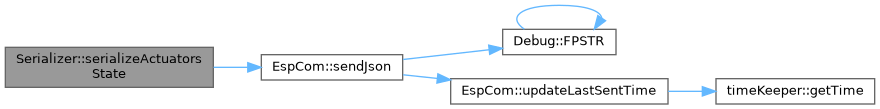

Here is the call graph for this function:

Here is the caller graph for this function:

serializeNetworkClick()

void Serializer::serializeNetworkClick	(	uint8_t	clickableIndex,
		constants::ClickType	clickType,
		bool	confirm
	)

Prepares and sends a JSON network click payload.

Uses NETWORK_CLICK_REQUEST (p:3) for network click requests. Example request: {"p":3,"t":1,"i":7}

Parameters

clickableIndex	The index of the clickable.
clickType	The type of the click (long, super long).
confirm	Set to true to confirm the action after an ACK has been received.

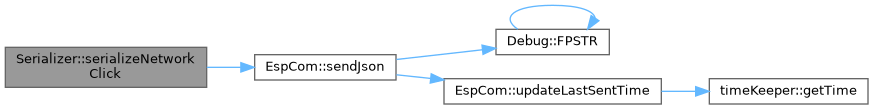

Here is the call graph for this function:

Here is the caller graph for this function:

serializeStaticJson()

void Serializer::serializeStaticJson

(

constants::payloads::StaticType

payloadType

)

Send a static json payload.

Parameters

payloadType

type of the payload.

Here is the call graph for this function:

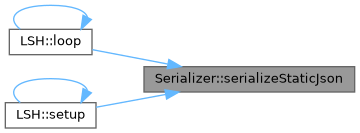

Here is the caller graph for this function:
