NetworkClicks Namespace Reference

"static class" Used to store and check network clicks More...

Functions
void	request (uint8_t clickableIndex, constants::ClickType clickType)
	Initiates a network click action.
auto	confirm (uint8_t clickableIndex, constants::ClickType clickType) -> bool
	Confirms a pending network click action after receiving an ACK.
void	storeNetworkClickTime (uint8_t clickableIndex, constants::ClickType clickType)
	Store click time for a network attached clickable.
auto	thereAreActiveNetworkCLicks () -> bool
	Get if there are active stored network clicks.
void	eraseNetworkClick (uint8_t clickableIndex, constants::ClickType clickType)
	Erase a stored network click.
auto	isNetworkClickExpired (uint8_t clickableIndex, constants::ClickType clickType) -> bool
	Checks if a pending network click has expired.
auto	checkNetworkClickTimer (uint8_t clickableIndex, constants::ClickType clickType, bool failover) -> bool
	Checks a specific pending network click for expiration or forced failover.
auto	checkAllNetworkClicksTimers (bool failover) -> bool
	Timeout checks for all network clicked clickables.

Variables
etl::map< uint8_t, uint32_t, CONFIG_MAX_CLICKABLES >	longClickedNetworkClickables {}
	Map of long clicked network clickable (<Clickable index, stored time>)
etl::map< uint8_t, uint32_t, CONFIG_MAX_CLICKABLES >	superLongClickedNetworkClickables {}
	Map of super long clicked network clickable (<Clickable index, stored time>)

Detailed Description

"static class" Used to store and check network clicks

Function Documentation

checkAllNetworkClicksTimers()

auto NetworkClicks::checkAllNetworkClicksTimers

(

bool

failover

)

-> bool

Timeout checks for all network clicked clickables.

If the time is over it performs local action and resets the timer

Parameters

failover

to perform local action regardless the state of the timer.

Returns

true if any timer is expired and at least one local fallback click has been performed.

false otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

checkNetworkClickTimer()

auto NetworkClicks::checkNetworkClickTimer	(	uint8_t	clickableIndex,
		constants::ClickType	clickType,
		bool	failover
	)		-> bool

Checks a specific pending network click for expiration or forced failover.

If the timer has expired, or if failover is true, this function triggers the configured fallback action (if any) and removes the click from the pending map.

Parameters

clickableIndex	The index of the clickable to check.
clickType	The type of the pending click.
failover	If true, force the fallback action regardless of the timer's state.

Returns

true if a fallback action was performed, false otherwise.

Here is the call graph for this function:

confirm()

auto NetworkClicks::confirm	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)		-> bool

Confirms a pending network click action after receiving an ACK.

Sends the final confirmation message and removes the click from the pending list.

Parameters

clickableIndex	The index of the clickable to confirm.
clickType	The type of click to confirm.

Returns

true if there are still other active network clicks pending, false otherwise.

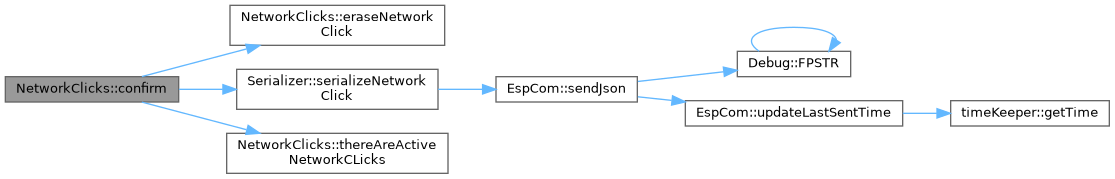

Here is the call graph for this function:

eraseNetworkClick()

void NetworkClicks::eraseNetworkClick	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)

Erase a stored network click.

Parameters

clickableIndex	index of the clickable.
clickType	type of the click.

Here is the caller graph for this function:

isNetworkClickExpired()

auto NetworkClicks::isNetworkClickExpired	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)		-> bool

Checks if a pending network click has expired.

If the click has expired, it is removed from the pending list as a side effect.

Parameters

clickableIndex	The index of the clickable to check.
clickType	The type of the pending click (long or super long).

Returns

true if the pending network click has expired, false otherwise.

Here is the call graph for this function:

request()

void NetworkClicks::request	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)

Initiates a network click action.

Sends the initial network click request and starts the fallback timer. This function does not return a value; the caller is responsible for managing any necessary state changes.

Parameters

clickableIndex	The index of the clickable that was pressed.
clickType	The type of click (LONG or SUPER_LONG).

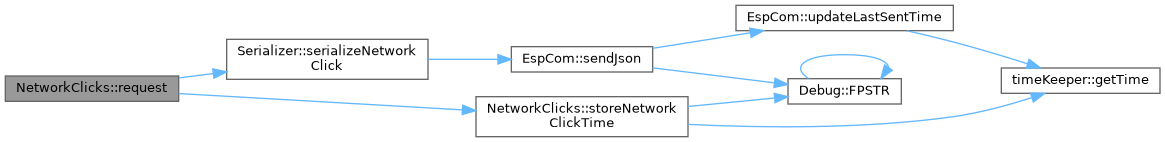

Here is the call graph for this function:

Here is the caller graph for this function:

storeNetworkClickTime()

void NetworkClicks::storeNetworkClickTime	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)

Store click time for a network attached clickable.

Parameters

clickableIndex	the index of the clickable.
clickType	the type of the click (long or super long).

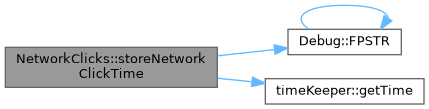

Here is the call graph for this function:

Here is the caller graph for this function:

thereAreActiveNetworkCLicks()

auto NetworkClicks::thereAreActiveNetworkCLicks

(

)

-> bool

Get if there are active stored network clicks.

Returns

true if active stored network clicks are found.

false there are no stored network click.

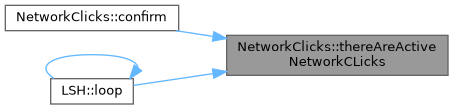

Here is the caller graph for this function:
