EspCom Namespace Reference

Perform communication via Serial. More...

Functions
void	init ()
	Init serial.
void	sendJson (const JsonDocument &json)
	Sends a JsonDocument via Serial.
auto	receiveAndDispatch () -> Deserializer::DispatchResult
	Reads from the communication serial port, processes complete messages, and dispatches commands.
auto	canPing () -> bool
	Ping minimum interval check.
void	updateLastSentTime ()
	Set last time payload has been sent to now.
auto	isConnected () -> bool
	Checks if the ESP is considered connected.

Variables
uint32_t	lastSentPayloadTime_ms = 0U
	Last time a payload has been sent.
uint32_t	lastReceivedPayloadTime_ms = 0U
	Last time a valid payload has been received.
bool	firstValidPayloadReceived = false
	True after the first valid payload has been received.
char	inputBuffer [constants::espComConfigs::RAW_INPUT_BUFFER_SIZE]
	Raw buffer for incoming serial data.
size_t	bytesRead = 0
	Number of bytes currently in the inputBuffer.

Detailed Description

Perform communication via Serial.

Function Documentation

canPing()

auto EspCom::canPing

(

)

-> bool

Ping minimum interval check.

Returns

true if the device can send ping.

false if the device can't send ping.

Here is the call graph for this function:

Here is the caller graph for this function:

isConnected()

auto EspCom::isConnected

(

)

-> bool

Checks if the ESP is considered connected.

The assumption is based on having received a valid payload (like a PING or any other command) within the defined CONNECTION_TIMEOUT_MS.

Returns

true if the ESP is connected.

false if the ESP is not connected (or timed out).

Here is the call graph for this function:

Here is the caller graph for this function:

receiveAndDispatch()

auto EspCom::receiveAndDispatch

(

)

-> Deserializer::DispatchResult

Reads from the communication serial port, processes complete messages, and dispatches commands.

This function handles both MsgPack and JSON-newline protocols based on compilation flags. For JSON, it buffers incoming bytes until a newline is detected, then parses the message. For MsgPack, it attempts to deserialize directly from the stream. Upon receiving a valid message, it calls Deserializer::deserializeAndDispatch to execute the command.

Returns

Deserializer::DispatchResult A struct indicating if the command changed the device state.

Here is the call graph for this function:

Here is the caller graph for this function:

sendJson()

void EspCom::sendJson

(

const JsonDocument &

json

)

Sends a JsonDocument via Serial.

Parameters

json	JsonDocument to be sent.

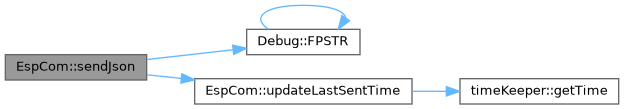

Here is the call graph for this function:

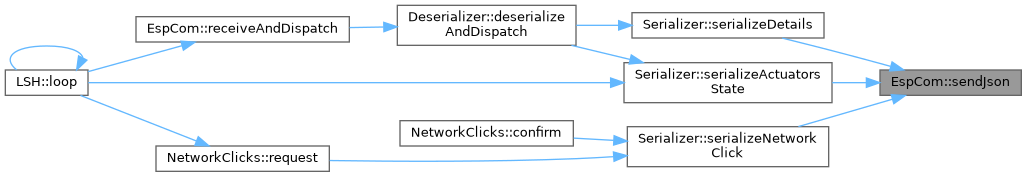

Here is the caller graph for this function:
