Clickables Namespace Reference

Forward declaration. More...

Functions
void	addClickable (Clickable *const clickable)
	Adds a clickable to the system.
auto	getClickable (uint8_t clickableId) -> Clickable *
	Get a single clickable.
auto	getIndex (uint8_t clickableId) -> uint8_t
	Get a single clickable index (in device vector of clickable).
auto	clickableExists (uint8_t clickableId) -> bool
	Get if the clickable actually exists.
auto	click (const Clickable *const clickable, constants::ClickType clickType) -> bool
	Perform a click.
auto	click (uint8_t clickableIndex, constants::ClickType clickType) -> bool
	Perform a click action.
void	finalizeSetup ()
	Resize vectors of all clickables to the actual needed size.

Variables
uint8_t	totalClickables = 0U
	Device real total Clickables.
etl::array< Clickable *, CONFIG_MAX_CLICKABLES >	clickables {}
	Device clickables.
etl::map< uint8_t, uint8_t, CONFIG_MAX_CLICKABLES >	clickablesMap {}
	Device clickables map (UUID -> clickables index)

Detailed Description

Forward declaration.

Globally stores all clickables (like buttons) and to operates over them.

Function Documentation

addClickable()

void Clickables::addClickable

(

Clickable *const

clickable

)

Adds a clickable to the system.

The clickable is stored in the main array and its ID is mapped to its index for fast lookups. If the maximum number of clickables is exceeded, the device will reset to prevent undefined behavior.

Parameters

clickable

A pointer to the Clickable object to add.

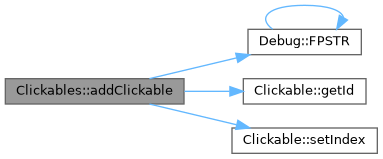

Here is the call graph for this function:

click() [1/2]

auto Clickables::click	(	const Clickable *const	clickable,
		constants::ClickType	clickType
	)		-> bool

Perform a click.

Method for all types of clicks, since not all click can be done within clickable class.

Parameters

clickable	the clickable to click.
clickType	the click type to perform.

Returns

true if any actuator state has been changed.

false otherwise.

Here is the call graph for this function:

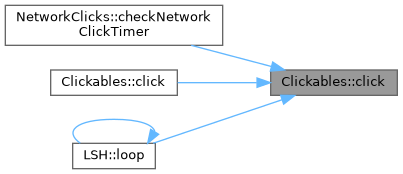

Here is the caller graph for this function:

click() [2/2]

auto Clickables::click	(	uint8_t	clickableIndex,
		constants::ClickType	clickType
	)		-> bool

Perform a click action.

This helper function centralizes all click-related logic...

Parameters

clickableIndex	The index of the clickable to click.
clickType	The click type to perform.

Returns

true if any actuator state was changed.

false otherwise.

Here is the call graph for this function:

clickableExists()

auto Clickables::clickableExists

(

uint8_t

clickableId

)

-> bool

Get if the clickable actually exists.

Parameters

clickableId

Unique ID of the clickable.

Returns

true if clickable exists.

false if clickable doesn't exist.

getClickable()

auto Clickables::getClickable

(

uint8_t

clickableId

)

-> Clickable *

Get a single clickable.

Parameters

clickableId

clickable UUID.

Returns

Clickable* a single clickable.

getIndex()

auto Clickables::getIndex

(

uint8_t

clickableId

)

-> uint8_t

Get a single clickable index (in device vector of clickable).

Parameters

clickableId

clickable UUID.

Returns

uint8_t a single clickable index (in device vector of clickable).

Variable Documentation

clickablesMap

etl::map< uint8_t, uint8_t, CONFIG_MAX_CLICKABLES > Clickables::clickablesMap {}

Device clickables map (UUID -> clickables index)

Device clickables map (UUID (numeric)-> clickables index)
