avr_fast_io.hpp File Reference

Typed helpers for AVR fast I/O access without Arduino macro casts. More...

#include <WProgram.h>
#include <stdint.h>
#include "internal/pin_tag.hpp"

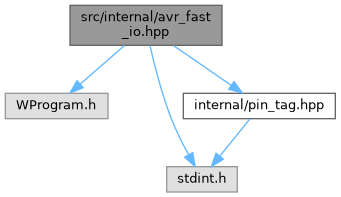

Include dependency graph for avr_fast_io.hpp:

Go to the source code of this file.

Classes
struct	lsh::core::avr::FastInputPinBinding
	Resolved fast-input binding for one Arduino pin. More...
struct	lsh::core::avr::FastOutputPinBinding
	Resolved fast-output binding for one Arduino pin. More...
struct	lsh::core::avr::StaticPinDescriptor
	Compile-time descriptor for one fully resolved AVR pin binding. More...

Functions
auto	lsh::core::avr::detail::inputRegisterFromAddress (uint16_t address) noexcept -> volatile const uint8_t *
	Rebuilds a read-only AVR register pointer from a raw MMIO address.
auto	lsh::core::avr::detail::outputRegisterFromAddress (uint16_t address) noexcept -> volatile uint8_t *
	Rebuilds a writable AVR register pointer from a raw MMIO address.
auto	lsh::core::avr::detail::modeRegisterFromAddress (uint16_t address) noexcept -> volatile uint8_t *
	Rebuilds a writable AVR DDR register pointer from a raw MMIO address.
auto	lsh::core::avr::readPinBitMask (uint8_t pin) noexcept -> uint8_t
	Reads the fast-I/O bit mask for one runtime Arduino pin.
auto	lsh::core::avr::readPinPortIndex (uint8_t pin) noexcept -> uint8_t
	Reads the Arduino core port index for one runtime pin.
auto	lsh::core::avr::inputRegister (uint8_t port) noexcept -> volatile const uint8_t *
	Converts one Arduino core port index to the AVR input register.
auto	lsh::core::avr::outputRegister (uint8_t port) noexcept -> volatile uint8_t *
	Converts one Arduino core port index to the AVR output register.
auto	lsh::core::avr::modeRegister (uint8_t port) noexcept -> volatile uint8_t *
	Converts one Arduino core port index to the AVR DDR register.
auto	lsh::core::avr::inputRegisterForPin (uint8_t pin) noexcept -> volatile const uint8_t *
	Resolves the AVR input register for one runtime Arduino pin.
auto	lsh::core::avr::outputRegisterForPin (uint8_t pin) noexcept -> volatile uint8_t *
	Resolves the AVR output register for one runtime Arduino pin.
auto	lsh::core::avr::modeRegisterForPin (uint8_t pin) noexcept -> volatile uint8_t *
	Resolves the AVR DDR register for one runtime Arduino pin.
auto	lsh::core::avr::makeFastInputPinBinding (uint8_t pin) noexcept -> FastInputPinBinding
	Builds the cached fast-input binding for one runtime pin.
auto	lsh::core::avr::makeFastOutputPinBinding (uint8_t pin) noexcept -> FastOutputPinBinding
	Builds the cached fast-output binding for one runtime pin.
template<uint8_t Pin>
auto	lsh::core::avr::readPinBitMask (::lsh::core::PinTag< Pin >) noexcept -> uint8_t
	Returns the bit mask for one compile-time pin tag.
template<uint8_t Pin>
auto	lsh::core::avr::inputRegisterForPin (::lsh::core::PinTag< Pin >) noexcept -> volatile const uint8_t *
	Resolves the AVR input register for one compile-time pin tag.
template<uint8_t Pin>
auto	lsh::core::avr::outputRegisterForPin (::lsh::core::PinTag< Pin >) noexcept -> volatile uint8_t *
	Resolves the AVR output register for one compile-time pin tag.
template<uint8_t Pin>
auto	lsh::core::avr::modeRegisterForPin (::lsh::core::PinTag< Pin >) noexcept -> volatile uint8_t *
	Resolves the AVR DDR register for one compile-time pin tag.
template<uint8_t Pin>
auto	lsh::core::avr::makeFastInputPinBinding (::lsh::core::PinTag< Pin >) noexcept -> FastInputPinBinding
	Builds the cached fast-input binding for one compile-time pin tag.
template<uint8_t Pin>
auto	lsh::core::avr::makeFastOutputPinBinding (::lsh::core::PinTag< Pin >) noexcept -> FastOutputPinBinding
	Builds the cached fast-output binding for one compile-time pin tag.

Detailed Description

Typed helpers for AVR fast I/O access without Arduino macro casts.

Author

Jacopo Labardi (labodj)

Copyright 2026 Jacopo Labardi

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

readPinBitMask()

template<uint8_t Pin>

auto lsh::core::avr::readPinBitMask ( ::lsh::core::PinTag< Pin >  ) -> uint8_t

inlinenoexcept

Returns the bit mask for one compile-time pin tag.

When the target board and pin are known by the constexpr Mega mapping, this avoids the Arduino PROGMEM lookup tables entirely. Unsupported pins fall back to the traditional runtime path.

Here is the call graph for this function:
